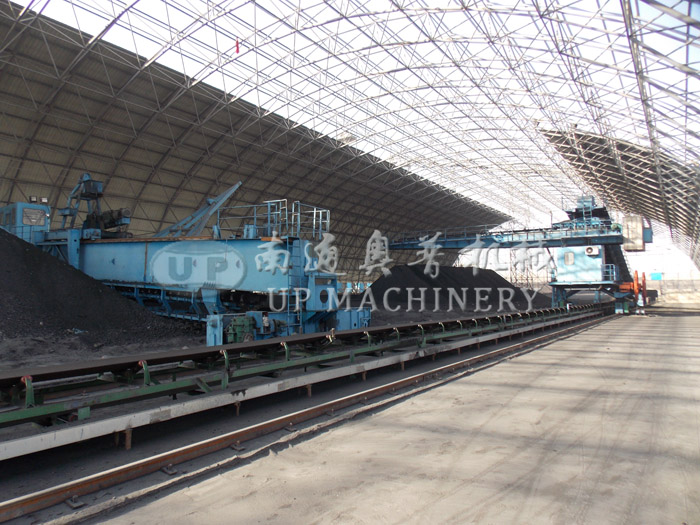

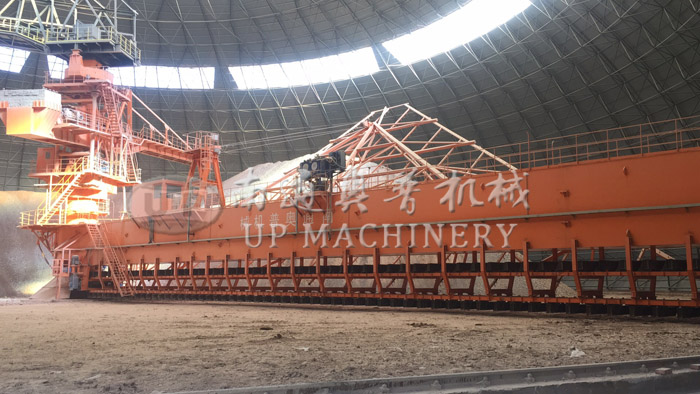

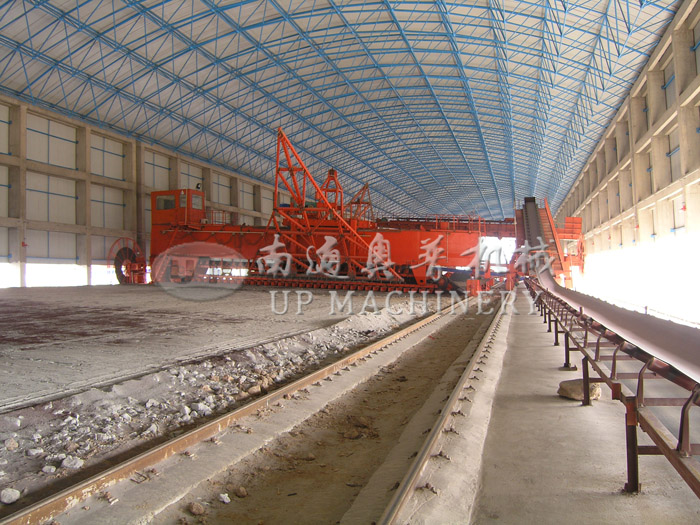

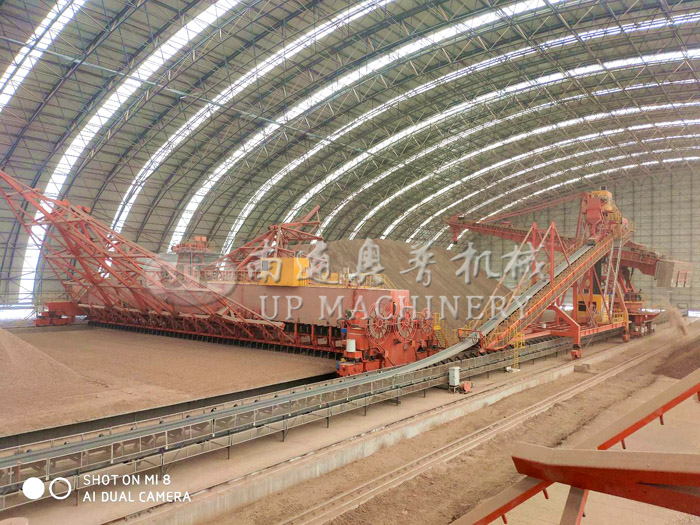

Bridge scraper reclaimer

Bridge scraper reclaimer

Brief introduction

The reclaimer starts working after stacker finishing work. Adjust the material rake to a certain angle according to the repose angle (actual repose angle of pile). Adjust the travel speed of vehicle according to the requirement of reclaiming volume. With the moving of vehicle, the rake rakes and mixes material at end of pile to get high homogenization & blending material. The materials are dropped to bottom of pile and convoyed to belt conveyor by scraper system at bottom of main beam. After taking out a material pile, start the shunting travel motor to remove the reclaimer to another pile to continue reclaiming.

Basic structure

Bridge-type scraper reclaimer consists of main beam, walking end beam, rake device, scraper reclaiming system, power cable reel, lubrication system, control room, etc.

桥式刮板取料机 (2).jpg



Main parameters

Type

Gauge (m)

Material

Bulk density (t/m³)

Granularity (mm)

Moisture (%)

Reclaiming capacityt/h

Optional way

Bridge-type scraper reclaimer

3.2-7

Limestone, coal, accessory material, etc.

0.9-1.45

70

2

50-3000

Rising head type/inclined type/horizontal type
