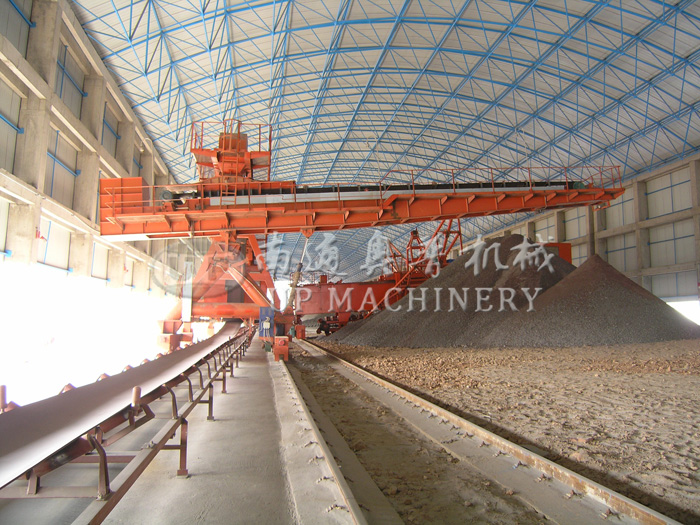

Side cantilever stacker

Side cantilever stacker



Brief introduction


Material enters into the yard through the belt conveyor, and then discharged on the belt conveyor of beam after lifting tail vehicle system. Stacker can do reciprocating motion along railway one side of yard on setting speed. And discharge the material in the yard forming the herringbone layer to complete the first mixing. Stacker can adjust pitching angle according to the height of stock pile automatically to minimize the fall between cantilever and pile to control the dust emission.

There are two forms of side cantilever stacker: fixed and rotary.




Basic Structure

Side-type cantilever stacker consists of travel mechanism, feeding trolley, frame, cantilever stacker, hydraulic amplitude variation system, control room, etc.


Main Technical Parameters

Type

Gauge (m)

Material

Bulk density (t/m³)

Granularity (mm)

Moisture (%)

Stacking capacityt/h

Optional way

Side cantilever stacker

3.2-7

Limestone, coal, accessory material, etc.

0.9-1.45

70

2

50-3000

fixed/rotary
