●General Information
The manual One-way plate gate valve, manual double-way plate gate valve is widely used in the pipe for material flow controlling in the building materials, metallurgy, mine, etc. It is the perfect powdery material flow control equipment.
●Technical Parameters
Nominal Pressure | 0.6 |
Temperature(℃) | ≤150 |
Medium | Powdery Material |

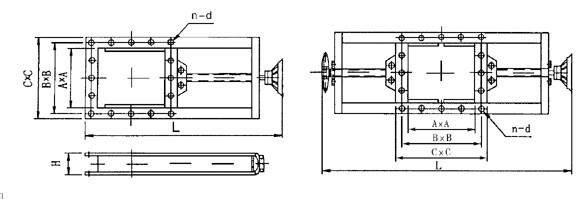

●Appearance and Installation Size
Type | A×A | B×B | C×C | L | H | n-d | Weight (kg) |
One-way | 200×200 | 256×256 | 306×306 | 820 | 120 | 8-Φ14 | 62 |
250×250 | 306×306 | 346×346 | 930 | 120 | 8-Φ14 | 70.5 | |
300×300 | 356×356 | 396×396 | 1050 | 120 | 8-Φ14 | 81 | |
400×400 | 456×456 | 496×496 | 1400 | 140 | 12-Φ14 | 114 | |
450×450 | 510×510 | 556×556 | 1450 | 140 | 12-Φ14 | 130 | |
500×500 | 560×560 | 606×606 | 1610 | 140 | 16-Φ14 | 147 | |
Two-way | 600×600 | 660×660 | 706×706 | 1830 | 160 | 16-Φ14 | 169 |
700×700 | 770×770 | 820×820 | 2130 | 160 | 20-Φ14 | 236 | |
800×800 | 870×870 | 920×920 | 2440 | 180 | 20-Φ14 | 303 | |
900×900 | 974×974 | 1030×1030 | 2660 | 180 | 24-Φ14 | 424 | |
1000×900 | 1074×1074 | 1130×1130 | 2870 | 180 | 24-Φ14 | 636 | |
Note | LMD-one way | I-hand wheel | Please choose hand wheel when the distance from the earth is less than 1.7 m, otherwise please chain wheel. Chain pitch number M=0.105×-113(×is the distance between lead screw and earth). | ||||
LMS-two way | II-chain wheel | ||||||
