●General Information
This pneumatic push rod plate gate valve is the improved product based on the traditional structure of our company. It has the characteristics of advanced produce process and reliable quality. The pneumatic push rod plate gate valve is widely used for the powdery material flow control of the pipe in metallurgy, mine, building materials, etc. It is the perfect quick open and close equipment.
●Technical Parameters
Nominal Pressure | 0.6 |
Medium | Powdery Material |
Temperature(℃) | ≤150 |

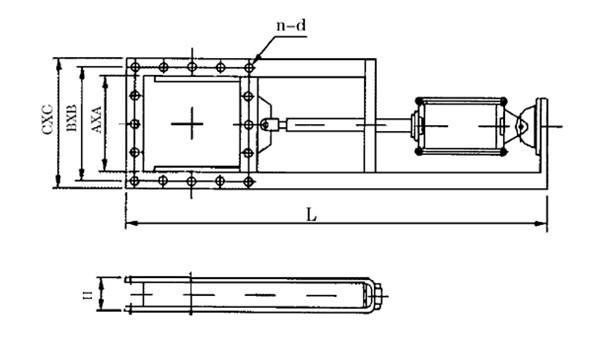

●Appearance and Installation Size
A×A | B×B | C×C | L | H | n-d | Weight(kg) |
200×200 | 256×256 | 306×306 | 920 | 120 | 8-Φ14 | 130 |
250×250 | 306×306 | 346×346 | 1050 | 120 | 8-Φ14 | 150 |
300×300 | 356×356 | 396×396 | 1260 | 120 | 8-Φ14 | 180 |
400×400 | 456×456 | 496×496 | 1560 | 140 | 12-Φ14 | 200 |
450×450 | 510×510 | 556×556 | 1670 | 140 | 12-Φ14 | 230 |
500×500 | 560×560 | 606×606 | 1890 | 140 | 16-Φ18 | 270 |
600×600 | 660×660 | 706×706 | 1830 | 160 | 16-Φ18 | 320 |
700×700 | 770×770 | 820×820 | 2520 | 160 | 20-Φ18 | 350 |
800×800 | 870×870 | 920×920 | 2750 | 180 | 20-Φ18 | 410 |
900×900 | 974×974 | 1030×1030 | 2950 | 180 | 24-Φ23 | 450 |
1000×1000 | 1074×1074 | 1130×1130 | 3110 | 150 | 24-Φ23 | 505 |
