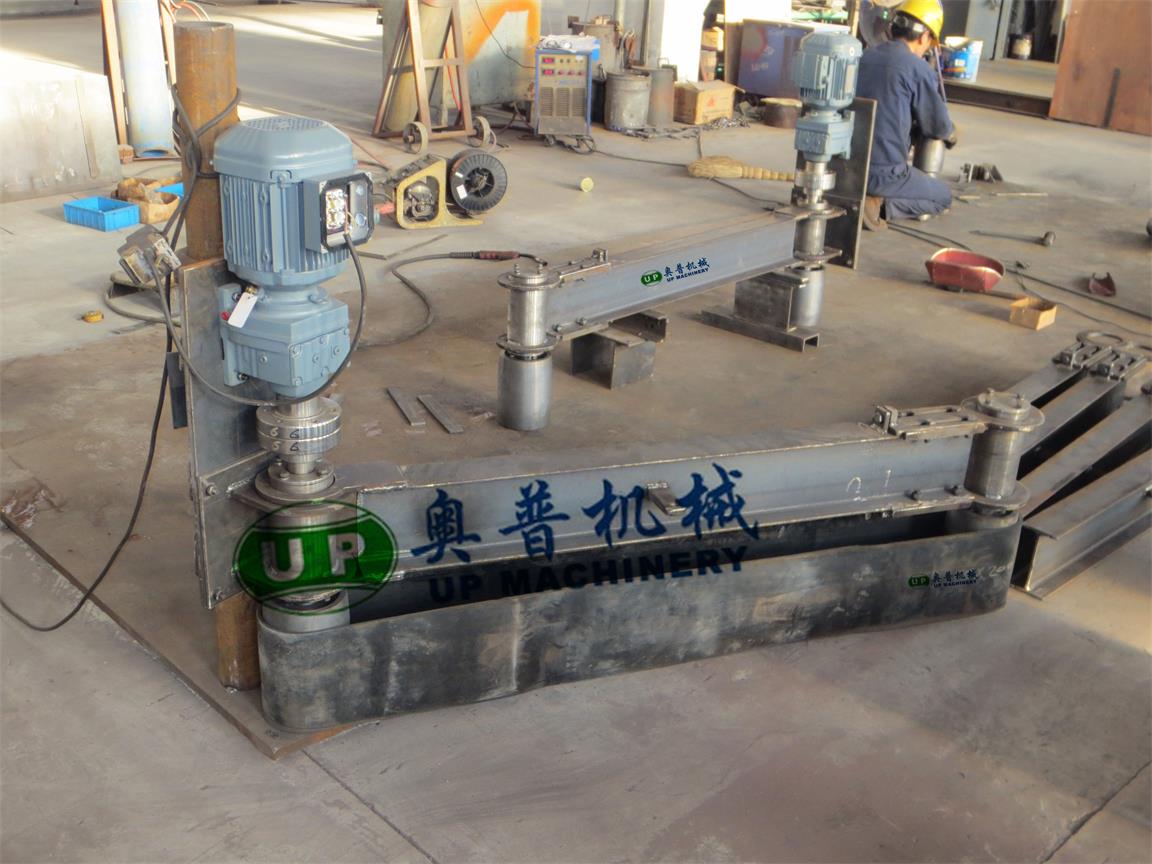

The electric bag diverter consists of the steel rack, the shiftable belt turn device, the electric push rod, the slide carriage and the control system, etc. It is mainly used for the turn convey the bag packed material from one belt conveyor to another belt conveyor which is vertical to the first one. It is suitable for the automatic convey line of the cement, grain, and chemical. It makes the bag packed material turning the direction automatically.

●Technical Parameters

1. Conveying material: packed cement 50 Kg/Bag.

2. Cycloidal pin gear speed reducer

(1) Type: BL15-9-1.1

(2) Speed Ratio: 9

(3) Motor Type: Y90S-4 Power: 0.55 KW, Rotate Speed: 1410 R/Min

3. Electric Push Rod

(1)Type: DT300-60

(2)Push Power: 300kg

(3)Speed：84mm

(4)Motor Type：A06332 Power: 0.55 Kw, Rotate Speed: 2800 R/Min, Voltage: 380V, Electricity current: 1.38A.

4. Travel Switch

(1)Type: JLXK1-111

(2)Voltage: 380V Electricity current: 5A.

●Technical Requirements

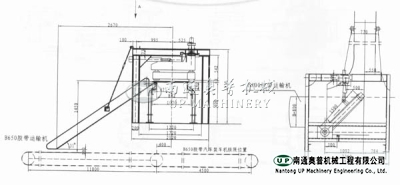

1. A direction arrow is showing the cement package is transport from belt conveyor and electric diverter valve to B650 belt conveyor.

2. The cement package from the belt conveyor to the diverter valve along the belt, please don't vertical to the belt.

3. The travel switch should be field installed.
