GBZF-700 High Temperature Cut-off Valve

GBZF-700 High Temperature Cut-off Valve





General Information
High temperature cut-off valve is suitable for the secondary use of waste heat of boiler, furnace, blast furnace in building materials, mining, power, glass, light industry and other industry and waste gas and smoke pollution control of a variety of hot blast pipe. It is an ideal equipment for energy-saving and high temperature gas switching.
Structure Characteristics
High temperature Cut-off valve adopts stainless steel and carbon steel welding. It is double layer structure, the inner lining has a flame retardant, heat resistance materials. It has high temperature resistance, high efficiency, perfect structure, scientific and reasonable, flexible start and stop, convenient operation, etc.
The drive mode is split type and drive device is not subject to any form of control so that can be installed with the customer's needs. Drive form can be divided into winch lifting (switch signal), electric actuators lifting (4 ~ 20 mA current signal), electro-hydraulic, electric push rod (switch signal).
Technical Parameters


Work Pressure
Temperature
Medium
0.1MPa
≤700℃
High gas like air, smoke, powdery material, etc.


Transmission Device Parameters


Type
1000~1200
1300~1500
1600~1800
1600~1800
2100~2300
2400~2500
Winch
1T
1T
1.5T
2T
2.5T
2.5T
Electric Actuator
HQ1000-0.5
HQ1000-0.5
HQ1500-0.5
HQ2000-0.5
HQ2500-0.5
HQ2500-0.5
Electro-hydraulic Push Rod
DYT1000
DYT1000
DYT1500
DYT2000
DYT2500
DYT2500
Electric Push Rod
DTⅡA1000
DTⅡA1500
DTⅡA2000
DTⅡA3000
DTⅡA3000
DTⅡA4000

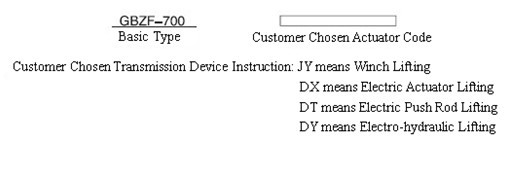

Type Instruction

GBZF-700 Appearance

GBZF-700 External Connection Dimension
A×A
B×B
C×C
B1
b
n-d
H
H1
1000×1000
1370×1370
1430×1430
700
16
32-Φ22
2160
1860
1100×1100
1470×1470
1530×1530
700
16
36-Φ22
2320
2020
1200×1200
1570×1570
1630×1630
700
16
36-Φ22
2470
2170
1300×1300
1670×1670
1730×1730
700
20
40-Φ22
2620
2320
1400×1400
1770×1770
1830×1830
700
20
40-Φ22
2770
2470
1500×1500
1870×1870
1930×1930
700
20
44-Φ22
2920
2620
1600×1600
1970×1970
2030×2030
750
20
44-Φ22
3180
2820
1700×1700
2070×2070
2130×2130
750
20
48-Φ22
3330
2970
1800×1800
2170×2170
2230×2230
750
20
48-Φ22
3480
3120
1900×1900
2270×2270
2330×2330
750
20
48-Φ22
3630
3270
2000×2000
2370×2370
2430×2430
750
20
48-Φ22
3780
3420
2100×2100
2470×2470
2530×2530
800
20
48-Φ22
4070
3650
2200×2200
2570×2570
2630×2630
800
20
52-Φ22
4220
3800
2300×2300
2685×2685
2750×2750
800
24
52-Φ26
4370
3950
2400×2400
2785×2785
2850×2850
800
24
52-Φ26
4520
4100
2500×2500
2885×2885
2950×2950
800
24
60-Φ26
4670
4250
