Shutter Gate TEZB-0.5C Automatic Airflow Control

Louver Valve TEZB-0.5C Shutter Automatic Airflow Control Valve




General Information
The shutter type manual airflow control valve is a new type energy-saving effective product which bases on the introduced Japanese technology. The shutter type automatic airflow control valve is new type energy-saving effective and reliable airflow control equipment. It is suitable for the inlet and aeration pipe of blowers in the metallurgy, mining, coal, building materials, chemical, electric power, etc. It controls the airflow in the pipes.
The shutter type manual airflow control valve is novel design, reasonable structure, light weight and adopts multiple spindle shutter, the equal fluid. And the start and stop moment of force is small, flexible action. It can control the perfect airflow for the net pipe system.
Technical Parameters


Nominal Pressure
Medium Flow Speed
Leakage Rate
Temperature
Medium
0.05MPa
≤25m/s
≤1%
≤300℃
Air, smoking, fly ash, etc.


Type Instruction

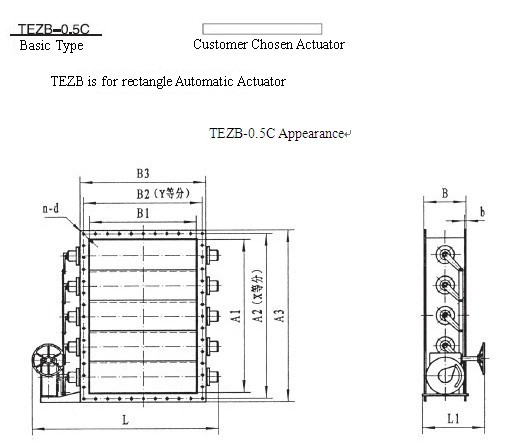

TEZB-0.5C Automatic External Connection Dimension


A1×A2
A2×B2
A3×B3
B
b
n-d
X
Y
L
L1
320×180
355×215
380×240
180
6
10-Φ10
3
2
680
275
320×250
355×285
380×310
180
6
12-Φ10
3
3
750
275
400×200
445×245
480×280
200
8
12-Φ12
4
2
710
275
400×320
445×365
480×400
200
8
14-Φ12
4
3
820
275
500×200
545×245
580×280
220
8
14-Φ12
5
2
710
275
500×400
545×445
580×480
220
8
18-Φ12
5
4
910
275
630×320
675×365
710×400
220
8
18-Φ12
6
3
820
275
630×400
675×445
710×480
220
8
20-Φ12
6
4
910
275
800×400
845×445
880×480
240
8
22-Φ12
7
4
910
365
8OO×630
845×675
880×710
240
8
26-Φ12
7
6
1130
365
1000×500
1055×555
1100×600
260
10
26-Φ14
8
5
1020
365
1000×800
1055×855
1100×900
260
10
30-Φ14
8
7
1300
365
1250×630
1305×685
1350×730
280
10
32-Φ14
10
6
1130
365
1250×1000
1305×1055
1350×1100
280
10
36-Φ14
10
8
1530
365
1400×800
1455×855
1500×900
300
10
38-Φ14
12
7
1330
365
1400×1250
1455×1305
1500×1350
300
10
44-Φ14
12
10
1780
365
1600×1000
1655×1055
1700×1100
320
10
42-Φ14
13
8
1530
365
1600×1250
1655×1305
1700×1350
320
10
46-Φ14
13
10
1780
365
1800×1250
1865×1315
1920×1370
340
12
46-Φ18
13
10
1880
480
1822×1400
1865×1465
1920×1520
340
12
50-Φ18
13
12
2030
480
2000×1250
2065×1315
2120×1370
360
12
50-Φ18
15
10
1880
480
2000×1800
2065×1865
2120×1920
360
12
58-Φ18
15
13
2430
480
2500×1800
2565×1865
2620×1920
420
12
60-Φ18
17
13
2430
540
2500×2000
2565×2065
2620×2120
420
12
64-Φ18
17
15
2630
540
2800×2500
2870×2570
2930×2630
440
16
72-Φ22
19
17
3130
540
3200×2800
3270×2870
3330×2930
480
16
80-Φ22
21
18
3430
600
3600×3200
3670×3270
3730×3330
520
16
88-Φ22
23
21
3830
600
4000×3600
4070×3670
4130×3730
520
16
100-Φ22
27
23
4230
600
