Electric Butterfly Valve FZAJW-0.5 Angle Automatic

Electric Butterfly Valve FZAJW-0.5 Angle Automatic Control Butterfly Valve


General Information

The angle Automatic Control Butterfly Valve is widely used for aerating in the pipe system and environment protection of building material, glass, mining, electric power, light industry, etc. The gas medium in the pipe is adjusted the flow and cut off by the different control signal.
Structural Characteristics
The angle Automatic Control Butterfly Valve adopts high quality carbon steel welding. It could be installed vertically or flatly. The equipped with the DKJ, ZKJ and Bernard type actuator and other accessories. It could switch between manual and automatic without disturb. And it could long distance control, automatic control and central control. It is the perfect equipment for automatic control operation and flow control.
Technical Parameters


Nominal pressure
Medium Flow Speed
Leakage Rate
Temperature
Medium
0.05MPa
≤25m/s
≤1%
C
Mn
Air, smoking, fly ash, etc.
≤300℃
≤350℃

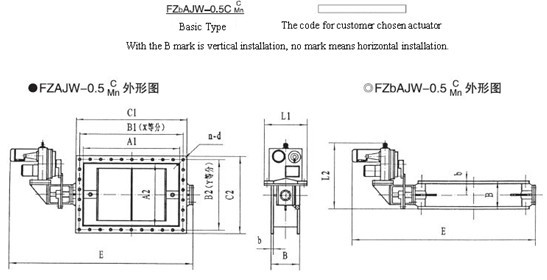

FZAJW-0.5 Appearance

FZAJW-0.5 External Connection Dimension


A1×A2
B1×B2
C1×C2
B
b
n-d
X
Y
E
L1
L2
Actuate Parameters
200×200
245×245
280×280
180
8
8-Φ12
2
2
1030
445
550
DKJ-210
T:100N·m
P:0.025KW
250×250
305×305
350×350
180
8
12-Φ12
3
3
1080
445
550
320×250
375×305
420×350
180
8
12-Φ12
3
3
1150
445
550
320×320
375×375
420×420
180
8
12-Φ12
3
3
1150
445
550
400×320
455×375
500×420
180
8
14-Φ14
4
3
1250
445
550
400×400
455×455
500×500
200
10
16-Φ14
4
4
1280
520
600
DKJ-310
T:250N·m
P:0.065KW
500×320
555×375
600×420
200
10
16-Φ14
5
3
1380
520
600
500×400
555×455
600×500
200
10
18-Φ14
5
4
1380
520
600
500×500
555×555
600×600
200
10
20-Φ14
5
5
1380
520
600
630×320
685×375
730×420
200
10
18-Φ14
6
3
1530
520
600
630×400
685×455
730×500
200
10
20-Φ14
6
4
1530
520
600
630×500
685×555
730×600
200
10
22-Φ14
6
5
1530
520
600
630×630
685×685
730×730
220
10
22-Φ14
6
6
1670
620
600
DKJ-410
T:600N·m
P:0.16KW
800×400
855×455
900×500
220
10
24-Φ14
7
4
1840
620
600
800×500
855×555
900×600
220
10
24-Φ14
7
5
1840
620
600
800×630
855×685
900×730
220
10
26-Φ14
7
6
1840
620
600
800×800
855×855
900×900
220
10
28-Φ14
7
7
1840
620
600
1000×400
1070×470
130×530
1220
12
22-Φ18
8
3
2040
620
600
1000×500
1070×570
130×630
1220
12
24-Φ18
8
4
2040
620
600
1000×630
1070×700
130×760
1220
12
26-Φ18
8
5
2040
620
600
1000×800
1070×870
130×930
1260
12
28-Φ18
8
6
2220
630
650
DKJ-510
T:1600N·m
P:0.4KW
1000×1000
1070×1070
130×1130
1260
12
32-Φ18
8
8
2220
630
650
1250×400
1320×470
380×530
1260
12
26-Φ18
10
3
2470
630
650
1250×500
1320×570
380×630
1260
12
26-Φ18
10
4
2470
630
650
1250×630
1320×700
380×760
1260
12
30-Φ18
10
5
2470
630
650
1250×800
1320×870
380×930
1260
12
32-Φ18
10
6
2470
630
650
1250×1000
1320×1070
380×1130
1300
16
36-Φ22
10
8
2470
630
650
1600×630
1670×700
730×760
1300
16
36-Φ22
13
5
2840
630
650
1600×800
1670×870
730×930
1300
16
38-Φ22
13
6
2840
630
650
1600×1250
1670×1320
730×1380
1340
16
46-Φ22
13
10
2840
630
650
DKJ-610
T:2500N·m
P:0.65KW
2000×800
2070×870
130×930
2340
16
42-Φ22
15
6
3330
630
650
2000×1000
2070×1070
130×1130
2340
16
46-Φ22
15
8
3330
630
650
