●General Information
This series electro-hydraulic sector gate valve designed to meet special requirement for the building materials. It is the perfect discharge equipment for the cement clinker bottom silo dust collector.
●Structure Characteristics
The electro-hydraulic sector gate valve sets the dust proof shell at the material outlet, which prevent the dust fly upward. It adopts the electro-hydraulic push rod as the power source and instead of the cylinder transmission and the electro-hydraulic sector gate valve adopts the step structure which reduces the material flow strike. There is wear-resistant scale board set fence structure at the key part of the valve body.
●Technical Parameters
Medium | Temperature | Discharge Quantity |
Dry Power | 150℃ | 6-80 m3/h |

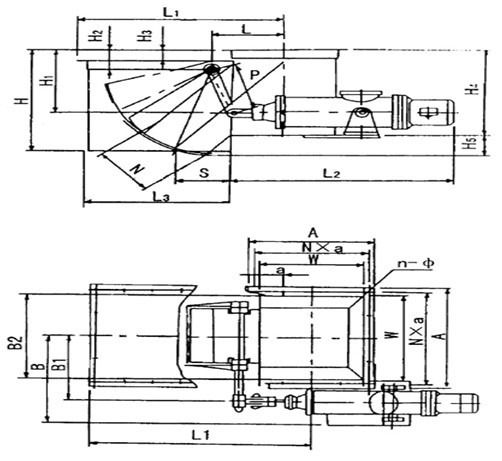

Type | Main Size (mm) | Electro-hydraulic Push Rod Type | Power/KW | |||||||||||||||||||
W | A | A1 | A2 | B | B1 | B2 | L | L1 | L2 | L3 | H | H1 | H2 | H3 | H4 | H5 | P | N×a | n×Φ | |||
TDSZ-30 | 300 | 400 | 120 | 150 | 350 | 470 | 300 | 300 | 800 | 1175 | 600 | 380 | 429 | 170 | 60 | 340 | 150 | 280 | 2×175 | 8-18 | DYZ700-280/110-P | 1.1 |
TDSZ-40 | 400 | 500 | 220 | 250 | 400 | 520 | 400 | 350 | 900 | 1175 | 650 | 540 | 429 | 170 | 60 | 480 | 140 | 280 | 3×150 | 12-18 | DYTZ700-280/110-P | 1.5 |
TDSZ-50 | 500 | 626 | 320 | 350 | 450 | 570 | 500 | 400 | 1050 | 1220 | 737 | 680 | 513 | 190 | 70 | 610 | 120 | 350 | 4×140 | 16-18 | DYTZ700-300/110-P | 1.5 |
TDSZ-60 | 600 | 726 | 360 | 390 | 500 | 620 | 600 | 450 | 1200 | 1220 | 837 | 750 | 513 | 190 | 70 | 670 | 150 | 350 | 4×165 | 16-18 | DYTZ700-300/110-P | 2.2 |
TDSZ-70 | 700 | 840 | 460 | 490 | 550 | 670 | 700 | 500 | 1400 | 1340 | 980 | 900 | 560 | 190 | 80 | 820 | 150 | 400 | 5×154 | 20-22 | DYTZ700-350/110-P | 2.2 |
TDSZ-80 | 800 | 940 | 560 | 590 | 600 | 720 | 800 | 550 | 1550 | 1340 | 1080 | 1050 | 560 | 190 | 80 | 950 | 150 | 400 | 5×174 | 20-22 | DYTZ700-350/110-P | 2.2 |
