●General Information
The airlock flap discharge valve is widely used as the ash bucket discharge device of different dust collectors in the building materials, metallurgy, petrochemical engineering, electricity power, light industry, etc. And it also could be used as the airlock or discharge device of variety grind machine, dry machine, storage bin, silo and closed conveying system, etc.
●Structure Characteristics
The airlock flap discharge valve opens and shuts alternately between up one and down one. The automatic reset mechanism is divided into Z heavy punch automatic reset mechanism which has characteristics of stable running, energy-saving, large discharge capability, and reliable airlock. C is the drive hammer automatic reset mechanism which has characteristics of small area using, energy -saving, convenient discharge adjustment, reliable discharge and airlock. B is cam, connecting rod transmission, weight automatic reset mechanism. D is cam, connecting rod transmission; spring automatic reset mechanism which has the characteristics of compact structure, reasonable design, stable running, reliable discharge and airlock. It is perfect equipment of feeder and discharge for no viscosity, and less Φ10mm particle material, crystal grain, mass of liquid material, .I-single plate discharge, II- double plates discharge.
●Technical Parameters
Medium | Temperature | Discharge Capability |
Dry Powdery Material, particle, crystal grain, etc. | 150℃ | 3~168 m3/h |

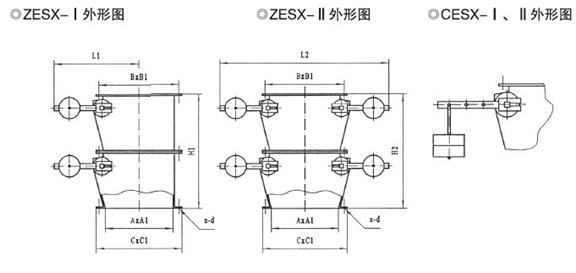

ESX Series Appearance

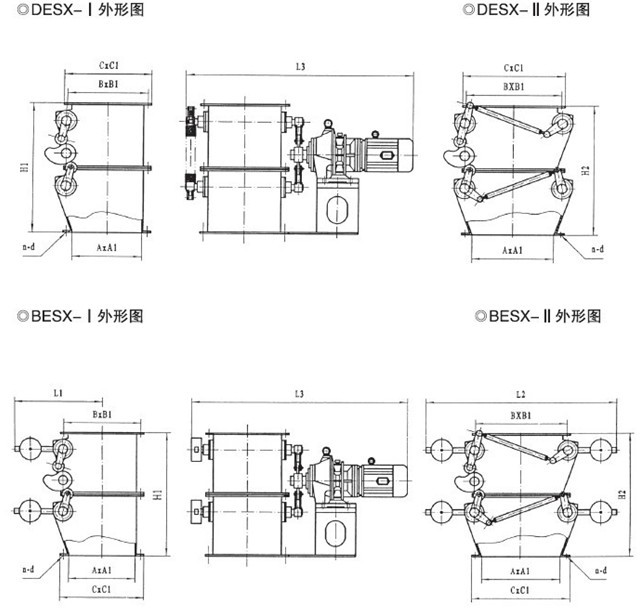

ESX Series External Connection Dimension
A×A1 | B×B1 | C×C1 | H1 | H2 | L1 | L2 | L3 | n-d | Transmission Device | Power |
150×150 | 195×195 | 230×230 | 500 | 420 | 705 | 8-Φ10 | BWY-15-59 | 0.6 | ||
200×200 | 245×245 | 280×280 | 600 | 440 | 490 | 880 | 782 | 8-Φ10 | BWY-15-59 | 0.6 |
220×220 | 265×265 | 300×300 | 620 | 450 | 510 | 920 | 802 | 8-Φ10 | BWY-15-59 | 0.6 |
250×250 | 305×305 | 350×350 | 650 | 480 | 580 | 980 | 867 | 12-Φ10 | BWY-18-71 | 0.8 |
300×300 | 355×355 | 400×400 | 750 | 540 | 610 | 1220 | 1240 | 12-Φl0 | BWY-22-71 | 1.1 |
320×320 | 375×375 | 420×420 | 780 | 560 | 630 | 1260 | 1264 | 12-Φ12 | BWY-22-71 | 1.1 |
400×400 | 455×455 | 500×500 | 950 | 700 | 750 | 1500 | 1550 | 16-Φ12 | BWY-2215-121 | 1.5 |
428×428 | 483×483 | 528×528 | 1000 | 760 | 764 | 1528 | 1600 | 16-Φ12 | BWY-2215-121 | 1.5 |
450×450 | 505×505 | 550×550 | 1050 | 800 | 775 | 1550 | 1680 | 16-Φ12 | BWY-2215-121 | 1.5 |
480×480 | 535×535 | 580×580 | 1100 | 800 | 790 | 1580 | 1720 | 20-Φ14 | BWY-2215-121 | 1.5 |
500×500 | 555×555 | 600×600 | 1150 | 850 | 800 | 1600 | 1750 | 20-Φ14 | BWY-2215-121 | 3.18 |
600×600 | 655×655 | 700×700 | 1350 | 980 | 960 | 1920 | 1820 | 20-Φ14 | BWY-2715-121 | 3.18 |
480×690 | 535×745 | 580×790 | 1100 | 800 | 790 | 1580 | 1910 | 20-Φ14 | BWY-2715-121 | 3.18 |
400×720 | 455×775 | 500×820 | 950 | 700 | 750 | 1500 | 2210 | 18-Φ14 | BWY-2715-121 | 3.18 |
600×800 | 655×855 | 700×900 | 1350 | 980 | 960 | 1920 | 2290 | 22-Φ14 | BWY-2715-121 | 3.18 |
800×800 | 855×855 | 900×900 | 1650 | 1260 | 1060 | 2320 | 2290 | 24-Φ14 | BWY-2715-121 | 3.18 |
800×1000 | 855×1070 | 900×1130 | 1260 | 2320 | 2400 | 28-Φ18 | BWY-2715-121 | 3.18 | ||
1000×1000 | 1070×1070 | 1130×1130 | 1500 | 2940 | 2400 | 28-Φ18 | BWY-3300-187 | 4.5 |
