The heavy hammer airlock flap discharge valve is widely used as the ash bucket discharge device of different dust collectors in the building materials, metallurgy, petrochemical engineering, electricity power, light industry, etc. And it also could be used as the airlock or discharge device of variety grind machine, dry machine, storage bin, silo and closed conveying system, etc.
This product closes and opens alternately by the gravity of materials and discharge automatically. And the heavy hammer reset automatic mechanism. It has the characteristics of stable running, energy-saving, material discharge reliable, etc. It is the perfect feeding and discharging equipment.
●Technical Parameters
Medium | Temperature | Discharge Quantity |
Dry Power | 150℃ | 3-168m3/h |

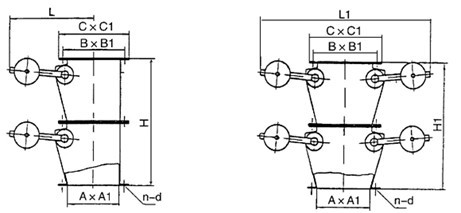

Main External Connection Dimension
A×A1 | B×B1 | C×C1 | H | H1 | L | L1 | n-d |
150×150 | 200×200 | 240×240 | 460 | 420 | 8-Φ11 | ||
200×200 | 250×250 | 290×290 | 580 | 490 | 8-Φ11 | ||
220×220 | 270×270 | 310×310 | 580 | 510 | 8-Φ11 | ||
250×250 | 300×300 | 340×340 | 580 | 580 | 8-Φ11 | ||
300×300 | 360×360 | 400×400 | 700 | 560 | 610 | 1220 | 12-Φ13 |
320×320 | 380×380 | 420×420 | 700 | 560 | 630 | 1260 | 12-Φ13 |
400×400 | 460×460 | 500×500 | 800 | 660 | 750 | 1500 | 16-Φ13 |
428×428 | 488×488 | 528×528 | 800 | 660 | 764 | 1528 | 16-Φ13 |
450×450 | 510×510 | 550×550 | 800 | 660 | 775 | 1550 | 16-Φ13 |
480×480 | 540×540 | 580×580 | 800 | 660 | 790 | 1580 | 16-Φ13 |
500×500 | 560×560 | 600×600 | 800 | 760 | 800 | 1600 | 16-Φ13 |
600×600 | 670×670 | 720×720 | 800 | 800 | 960 | 1920 | 16-Φ13 |
690×480 | 750×750 | 790×580 | 800 | 760 | 790 | 1580 | 20-Φ13 |
720×400 | 780×780 | 820×500 | 800 | 760 | 750 | 1500 | 20-Φ13 |
800×600 | 870×670 | 920×920 | 800 | 800 | 960 | 1920 | 20-Φ18 |
800×800 | 870×870 | 920×720 | 1200 | 1120 | 1060 | 2320 | 24-Φ18 |
1000×800 | 1070×870 | 1120×920 | 1120 | 2320 | 28-Φ28 | ||
1000×1000 | 1080×1080 | 1140×1140 | 1300 | 2940 | 24-Φ22 |
