Star Discharge Valve (Rotary Feeder) GLF-C (Square

Star Discharge Valve (Rotary Feeder) GLF-C (Square) GLF-C (Circular)




●General Information
The star discharge valve is widely used as the ash bucket discharge device of different dust collectors in the building materials, metallurgy, petrochemical engineering, electricity power, light industry, etc. And it also could be used as constant speed material falling or discharge device of variety grind machine, dry machine, storage bin, silo and closed conveying system, etc.
●Structure Characteristics
The start discharge (rotary feeder) adopts high quality steel welding structure. And the vane is with good wear-resistant. The transmission device, transmission shaft, vane combined as a whole. The stable working, constant speed material falling, convenient and energy save.

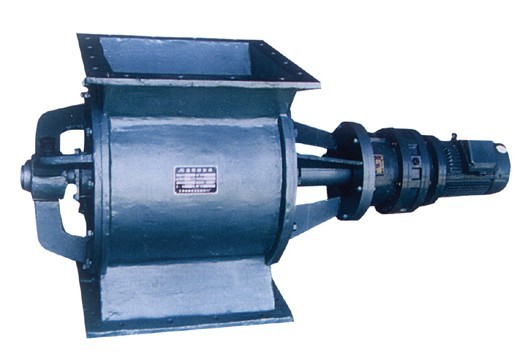

Star Discharge Valve Appearance

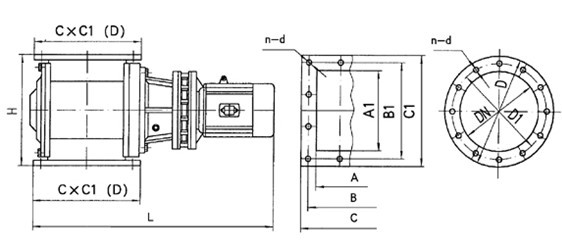

Main External Connection Dimension


A1×A
B1×B
C1×C
DN
D
D1
H
L
n-d
Transmission Power Type
Power/KW
Discharge Capability m3/h
Weight/kg
150×150
200×200
230×230
150
230
200
250
870
8-Φ13
BLY-15-43
0.75
5
121
200×200
260×260
300×300
200
300
260
300
910
8-Φ17
BLY-15-43
12
178
300×200
360×260
400×300



300
910
8-Φ17
BLY-15-43
18
214
250×250
310×310
350×350
250
350
310
350
910
8-Φ17
BLY-15-43
24
258
300×300
360×360
400×400
300
400
360
450
1140
8-Φ17
BLY-18-59
1.5
30
308
400×300
460×360
500×400



450
1140
10-Φ17
BLY-18-59
40
335
500×300
460×360
600×400



450
1140
12-Φ17
BLY-18-59
50
65
400×400
560×360
500×500
400
500
460
600
1220
12-Φ20
BLY-22-71
3
60
398
500×400
460×460
600×500



600
1220
14-Φ26
BLY-22-71
75
428
500×500
570×570
630×630
500
630
570
760
1400
16-Φ26
BLY-22-71
118
524
700×500
770×570
830×630



760
1400
18-Φ26
BLY-22-71
160
654
