●General Information
KX Bottom Unloader is special designed for two or more silos. It could convey the material continuously to the certain position. The equipment has compact structure and reasonable process arrangement. If you choose this equipment will cut cost for many other device and save energy and investment.

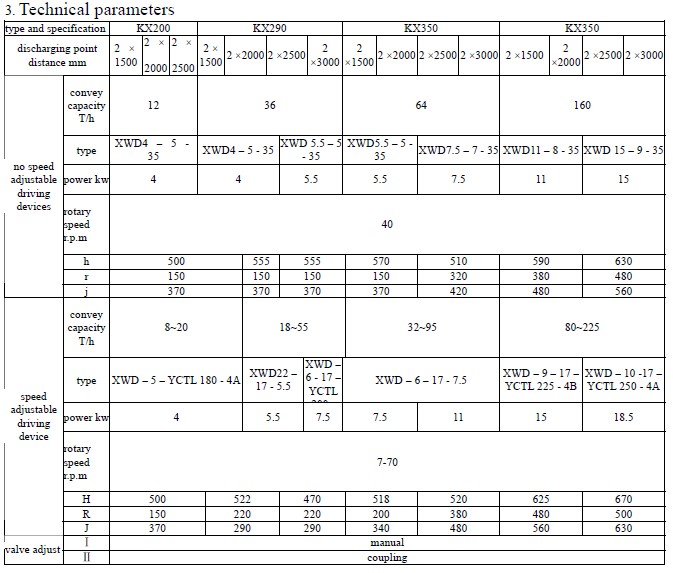

●Technical Parameters
Type | Φ200 | Φ250 | ||||||||
Space between Unload Point /m | 2x1500 | 2x2000 | 2x2500 | 2x1500 | 2x2000 | 2x2500 | 2x3000 | |||
Delivery Value /m3/h | 12 | 36 | ||||||||
Type | XWD5-35-4 | XWD5-35-4 | XWD5-35-5.5 | |||||||
Power/kw | 4 | 4 | 5.5 | |||||||
Revolving Speed/ rpm | 40 | |||||||||
h | 500 | 555 | 555 | |||||||
r | 150 | 150 | 150 | |||||||
j | 370 | 370 | 370 | |||||||
Delivery Value m3/h | 8-20 | |||||||||
Speed Control Drive Device | Type | XWD5-17-YCTL180-4A | XWD5-17-YCTL180-4A | XWD5-17-YCTL200-4B | ||||||
Power Kw | 7~70 | |||||||||
Revolving Speed rpm | 4 | 4 | 7.5 | |||||||
h | 500 | 555 | 470 | |||||||
r | 150 | 150 | 275 | |||||||
j | 370 | 370 | 380 | |||||||
Valve Control Pattern | Ⅰ | Manual | ||||||||
Ⅱ | Shaft Chain Wheel | |||||||||
Type | Φ300 | Φ350 | ||||||||
Space between Unload Point /m | 2x1500 | 2x2000 | 2x2500 | 2x1500 | 2x2000 | 2x2500 | 2x3000 | |||
Delivery Value m3/h | 64 | 160 | ||||||||
Type | XWD7-35-7.5 | XWD5-35-4 | XWD5-35-5.5 | |||||||
Power kw | 7.5 | 5.5 | 7.5 | |||||||
Revolving Speed/ rpm | 40 | |||||||||
h | 500 | 555 | 555 | |||||||
r | 150 | 150 | 150 | |||||||
j | 370 | 370 | 370 | |||||||
Delivery Value /m3/h | ||||||||||
Speed Control Drive Device | Type | XWD5-17-YCTL180-4A | XWD5-17-YCTL180-4A | XWD5-17-YCTL200-4B | ||||||
Power Kw | 7~70 | |||||||||
Revolving Speed rpm | 4 | 4 | 7.5 | |||||||
h | 500 | 555 | 470 | |||||||
r | 150 | 150 | 275 | |||||||
j | 370 | 370 | 380 | |||||||
Valve Control Pattern | Ⅰ | Manual | ||||||||
Ⅱ | Shaft Chain Wheel |

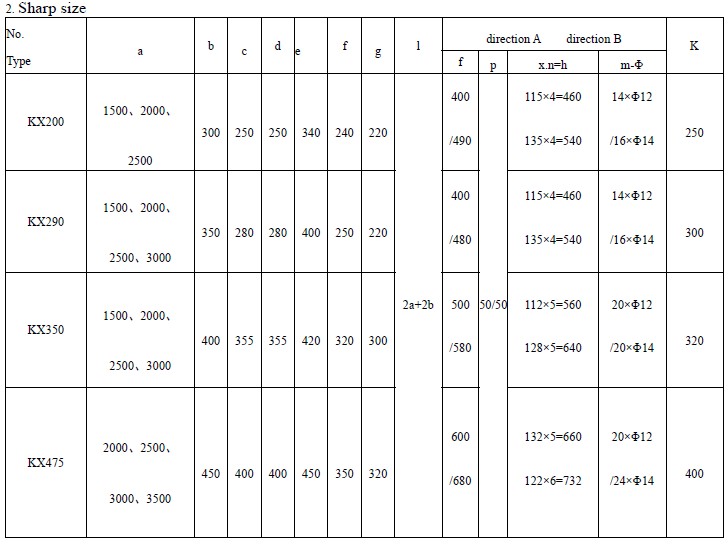

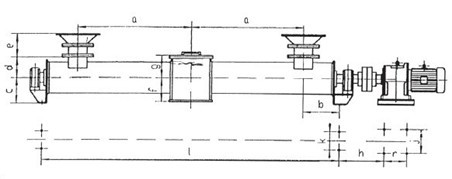

●Basic Size
Type | a | b | c | d | e | f | g | k | i |
Φ200 | 1500,2000,2500 | 300 | 250 | 250 | 340 | 240 | 220 | 250 | 2a+2b |
Φ250 | 1500,2000.2500,3000 | 350 | 280 | 280 | 400 | 250 | 220 | 300 | |
Φ300 | 1500,2000,2500,3000 | 400 | 355 | 355 | 420 | 320 | 300 | 320 | |
Φ350 | 2000,2500,3000.3500 | 450 | 400 | 400 | 450 | 350 | 320 | 400 |
