●Technical Parameters
Material Type | Clinker | Material Capacity | Y=1.25t/m3 | |
material Temperature | ≤90℃ | Material granularity | ≤150 mm | |
load ability | 220t/h | Bulk Head Flexible Distance | 4400 mm | |
Vibrate feeding machine | Type | DZG1103# | ||
Power | 2×1.1KW | |||
Nominal Voltage | 380V | |||
Nominal Electricity | 4.7A | |||
winch | Type | JE33.250 | ||
Lifting Speed | 8m/min | |||
Nominal lifting Weight | 20000N | |||
Nominal Voltage | 380V | |||
Power | 4.5KW | |||
capacitance material level Switch | Type | CTS-DFB-E-B-A-B-400 | Max Pressure | 100bar |
Voltage | 220V AC | |||
Probe Size | Φ25×400 | Temperature | -20℃~80℃ | |

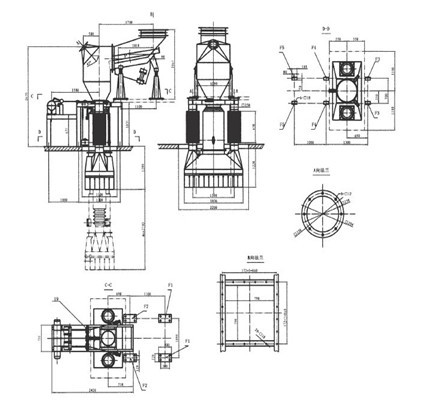

Static Load | Dynamic Load | ||
F1 | Vertical | 3.72KN | ±0.110KN |
Horizontal | ±0.120KN | ||
F2 | Vertical | 6.36KN | ±0.110KN |
Horizontal | ±0.120KN | ||
F3 | Vertical | 7.2KN | ±2.0KN |
Horizontal | |||
F4 | Vertical | 7.8KN | ±2.0KN |
Horizontal | |||
F5 | Vertical | ±3.0KN | ±0.75KN |
Horizontal |
●Technical Requirement
1. The end of the steel rope is fastened in the winch’s silo. Please fasten tightly in case of dropping.
2. Adjust the steel rope, avoiding the inclination when the bulk head is lifting up and down.
3. The roller should roll well after installation.
4. The dust collecting ability 2×3000 m3/h.
